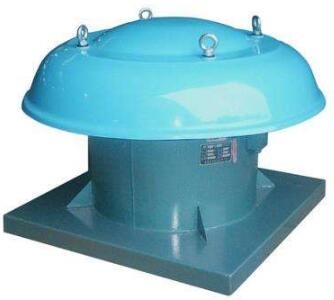

DWF series Industrial Roof ventilator fan

1. There are many formal specifications and a wide range of applications. According to the different requirements of air volume, air pressure and noise, the following two types of fans can be selected

The axial flow roof fan, codenamed DWF- Ⅰ, has the characteristics of large air volume and lower pressure than centrifugal fan. At the same time, it can be designed as bi-directional rotary reversible type according to the user's requirements, and has the characteristics of equivalent positive and negative working conditions.

The centrifugal roof fan, codenamed DWF- Ⅱ, is suitable for low air volume and high pressure.

2, high efficiency, low noise fan system adopts advanced CAD series software, through multi-objective optimization design, development. In this series fan, the fan adopts the same diameter and different rotation speed, different angle change the air volume, the wind pressure, the method of adopting the same diameter, different rotation speed, different angle to change the air volume, the wind pressure, in this series fan, the fan adopts the same diameter different rotation speed, different angle change the air volume, the wind pressure, In order to meet the needs of different working conditions and achieve the fan and system matching to achieve energy saving and noise reduction.

3. The impeller of light weight, high strength and corrosion resistant fan can be made of ABS (engineering plastic FRP) and aluminum alloy plate according to the different corrosiveness of working air medium, which requires high pressure. For centrifugal fan with high speed, the impeller surface is treated by special galvanizing and plastic spraying, which not only reduces the weight of the whole machine, but also has good corrosion resistance.

4.The rotary inertia of the fan with long life is small, the precision of dynamic balance is high and the running is stable. The standard of factory internal control of each performance index is higher or better than the standard of fan industry, which can ensure the fan to run stably for a long time.

5, for the wind turbine can be used according to the requirements, made explosion-proof type, flame retardant, suitable for anti aging occasions suction flammable explosive and corrosive gases.

6. The air cap parts of this fan are made of glass fiber reinforced plastic and imported rubber coat resin film is used on the outside, the surface is too soft, beautiful and generous, and it is practical. It can also be made into steel air cap by zinc-coated plastic spraying PVC according to the requirements of the user.

7, the temperature of the medium is no more than 60 ℃, the gas is not allowed to contain excessive viscous material, the dust content is less than 100 mg / m ~ 3.

8, description of model structure

The diameter of axial flow roof fan is from Φ 300- Φ 2400mm, there are 17 machine numbers. Centrifugal roof fan has Φ 400, Φ 560,Φ 630mm3 machine number.

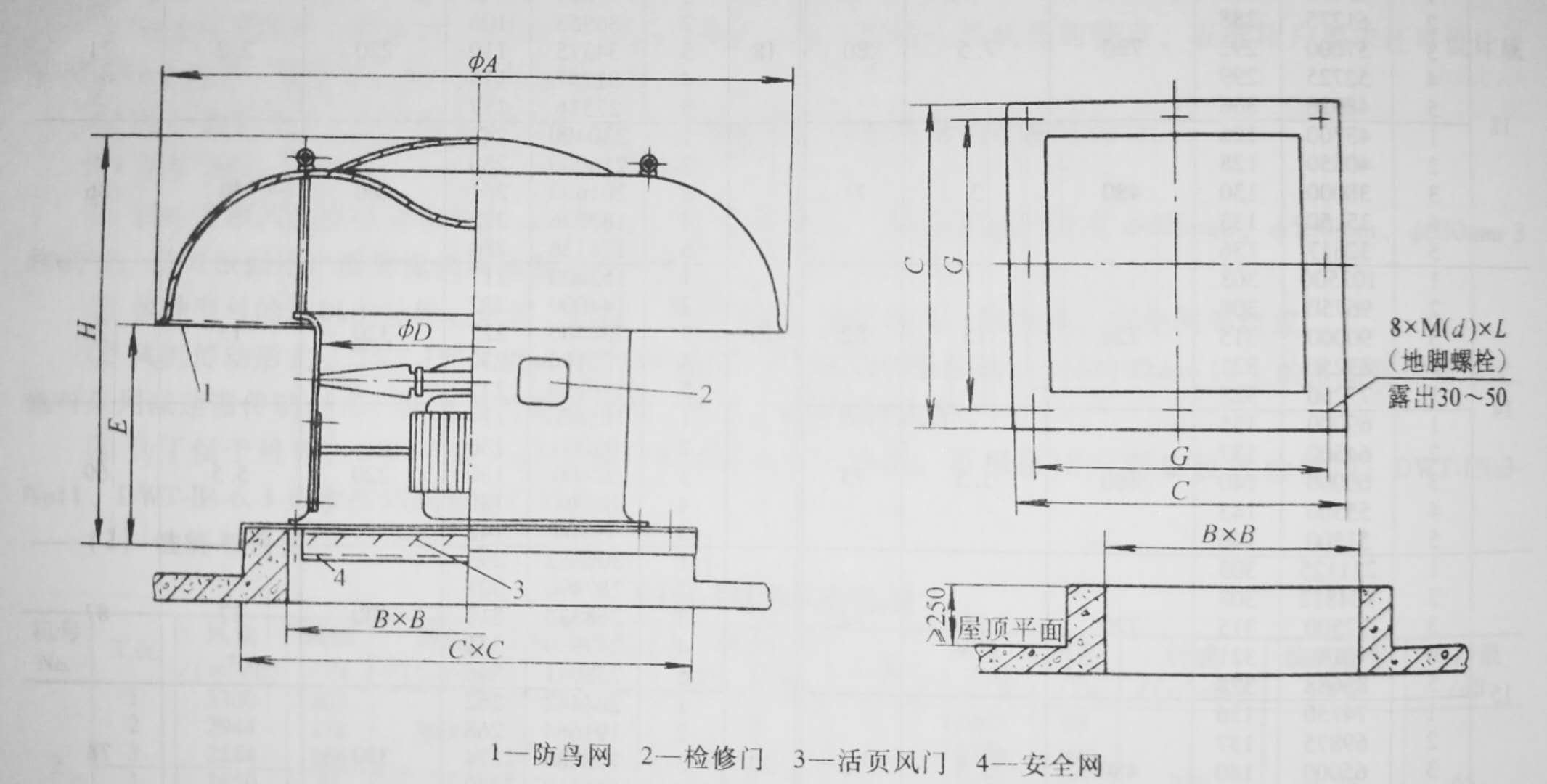

Various types of fan structure can be found in the assembly diagram, it consists of impellers, air ducts, hood, transmission parts, loose-leaf air doors, bird-proof nets, safety nets and other components.

(3) DWF- Ⅰ type fan Φ ≤ 1100mm adopts direct transmission of motor, more than 1100mm of fan adopts belt transmission, or adopts transmission form of reducer. There are three types of loose-leaf wind valve: gravity type, electric type and moving-type type.

The axial flow roof fan with DWF- Ⅰ Φ > 1100mm can be used to fix the repair door DWT- Ⅰ 3- 11 DWT- Ⅱ 4-6.3.

9, installation, use, maintenance instructions

1) after opening the packing box, check whether the fan components (especially impeller and housing) are operating deformed, whether the coupling is loose, and if so, correct in time.

Put a circle of rubber strip or sealant on the basis of prefabricated installation, then lift the fan to the installation basis, the bottom foot bolt shall not be counterbalanced by tapping, and the bolt after alignment shall be fastened.

The hoisting fan must be hoisted with the hooks, and the hoisting hook should not be used to hoist the brim of the hood.

(4) the hood of the large engine number above 12 # is a split section, and the packing of the time division parts is supplied. For the large machine number fan, the main body of the fan should be installed on the basis first, and then the hood shall be installed on the main body of the fan. Waterproofing sealant is needed on the flange of dissected inner cap connection.

5) Axial flow, centrifugal inlet if required, soft connection, blower not bearing pipe weight.

(6) after the installation, the power supply test operation, check the fan operation is normal.

7) during commissioning or normal use, the following situations should be immediately shut down to ascertain the cause and only to start after troubleshooting:

(1) strong vibration;

2sudden noise increase or make abnormal noise;

(3) superpower of the motor;

(4) White smoke from motor;

In use, the fan connectors should be inspected regularly, fasteners are loosened, lubricated grease is added regularly, impeller is dusted.

Order matters for attention

When ordering a fan, the user should clearly state the following:

Name, type, frequency, power supply of fan to be ordered

2) physical and chemical properties of working medium (generally industrial gas) and performance parameters in this state. If this is not indicated, the working medium shall be air in standard condition

3) the required attachment name and its type should be indicated (bird-proof net, safety net, loose-leaf door as accessories to the fan shall not be included in the fan)

Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
