Products > Marine Valve for ship use > Marine check globe Valve > JIS F7377 16K Ship cast iron screw down non return check globe valve

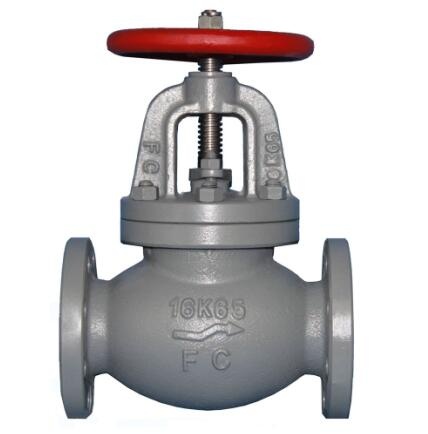

Product name : JIS F7377 16K Ship cast iron screw down non return check globe valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN200
Nominal Pressure: 16K
Material:FC Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

JIS F7377 16K Ship cast iron screw down non return check globe valve

1.Product Description of marine FC SDNR check globe valve

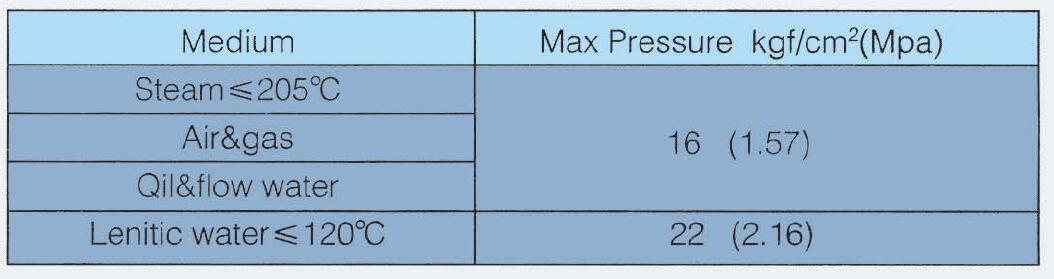

Specification for marine check globe valve

Standard: JIS F7377

Nominal Pressure:16kgf/cm2

Nominal Diameter: 50mm~200mm

Type: globe

Temperature: < 205℃

Certificate: CCS, ABS, BV, GL ,LR.RINA.RS.DNV etc

Actuation Ways:Manual, pneumatic, electric etc, it is suitable for cutting or adjust and throttling medium

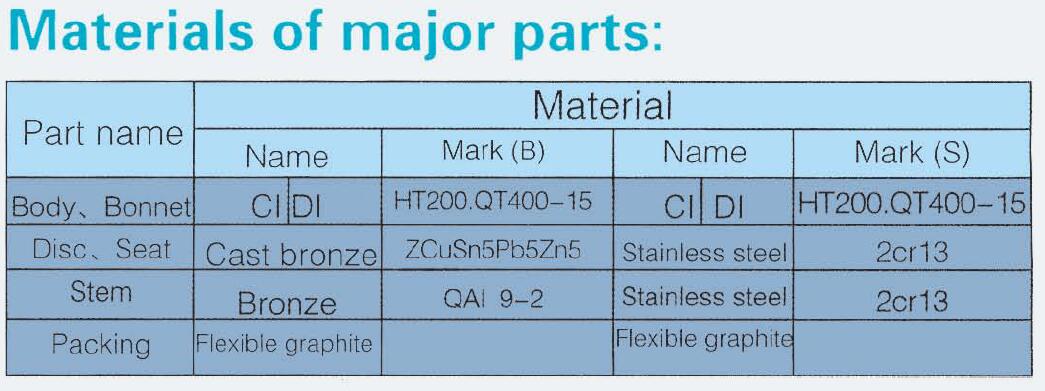

2.Material Tableof marine FC SDNR check globe valve

No

name of part

material

class B

class C

1

body

FC200

2

bonnet

FC200

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200

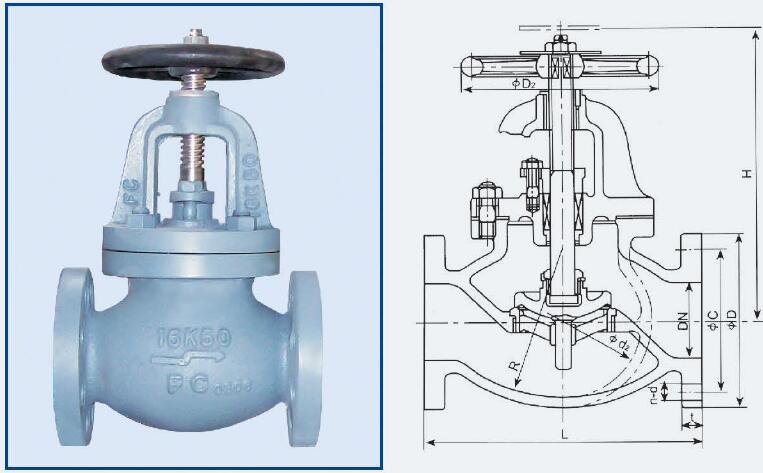

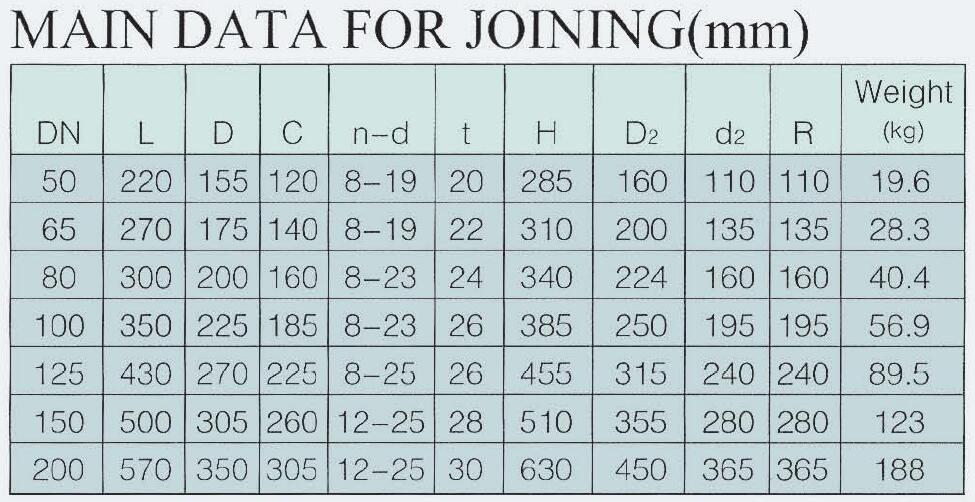

3.Outline dimensions of marine FC SDNR check globe valve





Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
