Product name : JIS F7409 16K Marine bronze SDNR check globe valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN15~DN50
Nominal Pressure: 16K
Material:Bronze
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------
JIS F7409 16K Marine bronze SDNR check globe valve

1.Product description of Marine bronze SDNR check globe valve

Standard: JIS F7409

Nominal Pressure: 16K

Nominal Diameter: DN15~DN50

Medium: water, sea water, air, oil etc

Temperature:  -40℃~205℃

Actuation ways:Globe valve:Manual, pneumatic, electric etc

it is suitable for cutting or adjust and throttling medium.

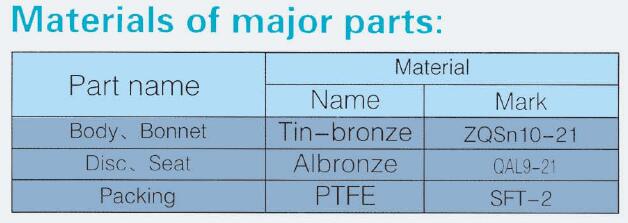

2.Material Table of Marine bronze SDNR check globe valve



Name of Part

Material

1

Body

BC6

2

Bonnet

BC6

3

Disc

BC6

4

Stem

C3771BD OR BE

5

Hand wheel

FC200

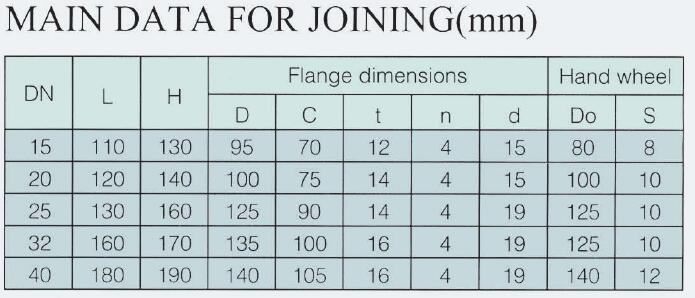

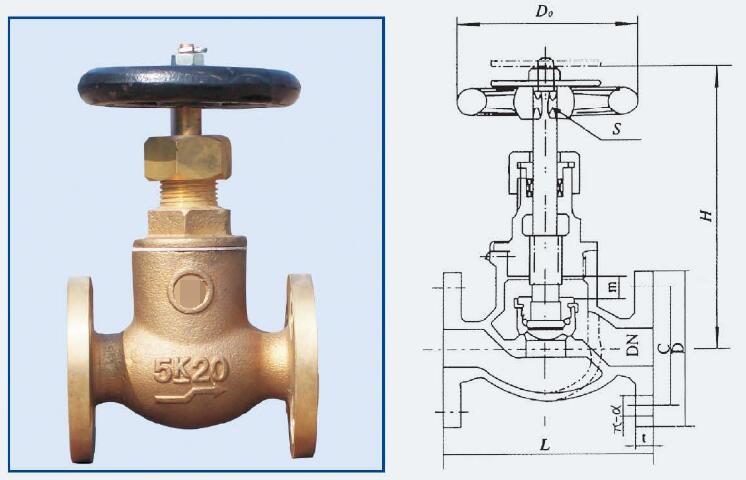

3.Outline dimensions of Marine bronze SDNR check globe valve




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
