Products > Marine Valve for ship use > Marine check globe Valve > JIS F7352 5K Marine bronze screw down check angle valve
Product name : JIS F7352 5K Marine bronze screw down check angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN15~DN65
Nominal Pressure: 5K
Material:Bronze
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------
JIS F7352 5K Marine bronze screw down check angle valve

1.Product description:Standard: JIS F7352

Nominal Pressure: 5K

Nominal Diameter: DN15~65

Medium: water, sea water, air, oil etc

Temperature:  -40℃~250℃

Actuation ways:Globe valve:Manual, pneumatic, electric etc

it is suitable for cutting or adjust and throttling medium.

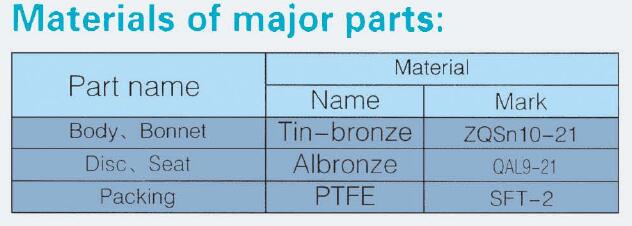

2.Material Table of Marine bronze SDNR check angle valve



Name of Part

Material

1

Body

BC6

2

Bonnet

BC6

3

Disc

BC6

4

Stem

C3771BD OR BE

5

Hand wheel

FC200

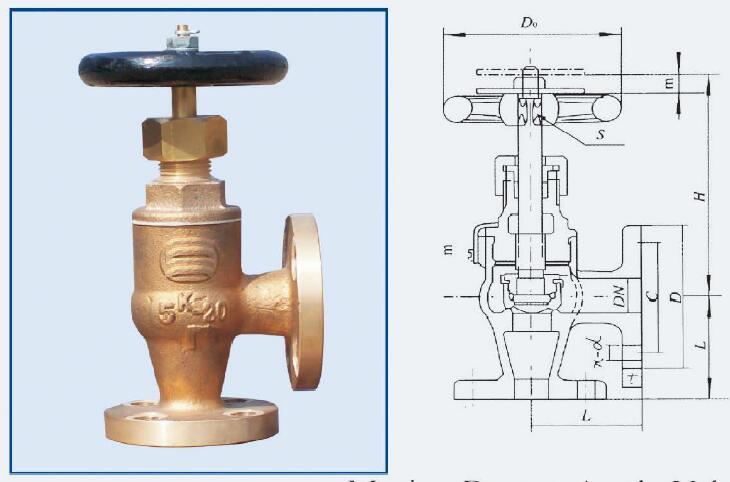

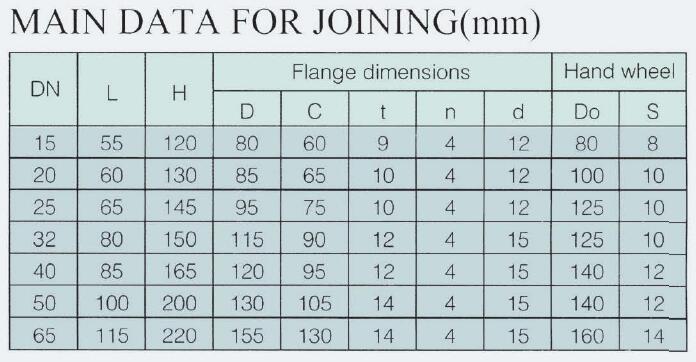

3.Outline dimensions of Marine bronzeSDNR check angle valve






Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
