Products > Marine Valve for ship use > Marine check globe Valve > JIS F7472 10K Marine cast steel screw down non return check angle valve
Product name : JIS F7472 10K Marine cast steel screw down non return check angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN300
Nominal Pressure: 10K
Material:SC Cast steel

Brand:Bluesea Marine

-------------------------------------------------------------------------------------------------------------------------------------------------------

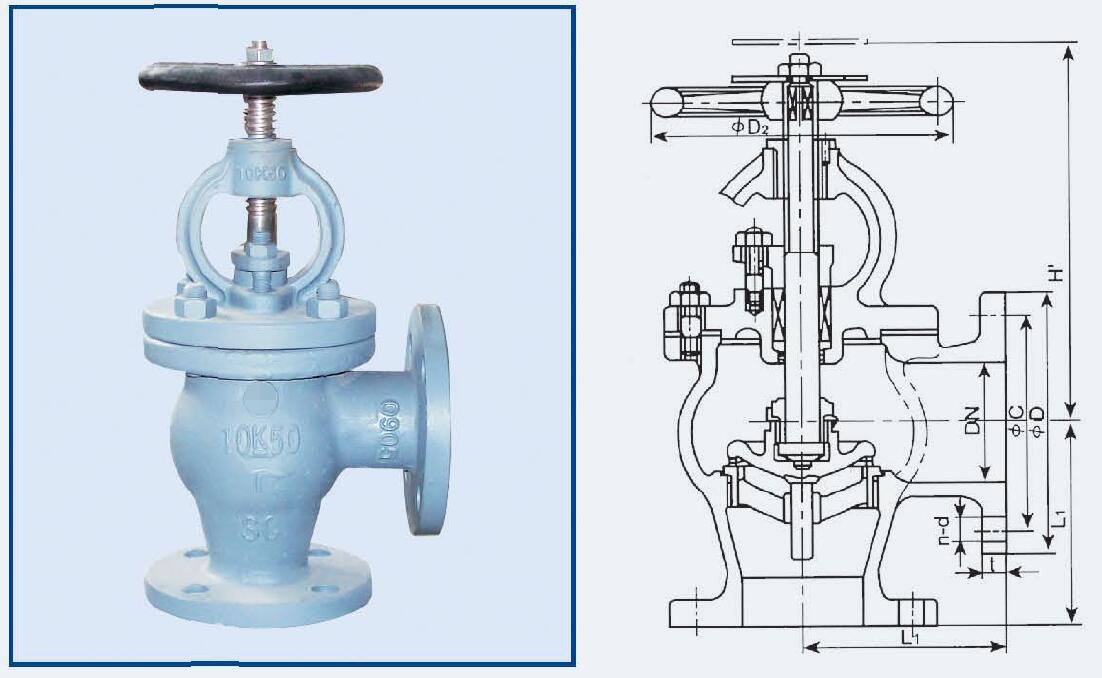

JIS F7472 10K Marine cast steel screw down non return check angle valve

1.Product description of marine SC SDNR check angle valve:

Information

Standard: JIS F7472

Pressure: 10kgf/cm2

Diameter: 50mm~300mm

Type:Angle valve

Medium: fresh water, sea water, oil, air etc

Actuation Ways: manual, automatic, pneumatic etc

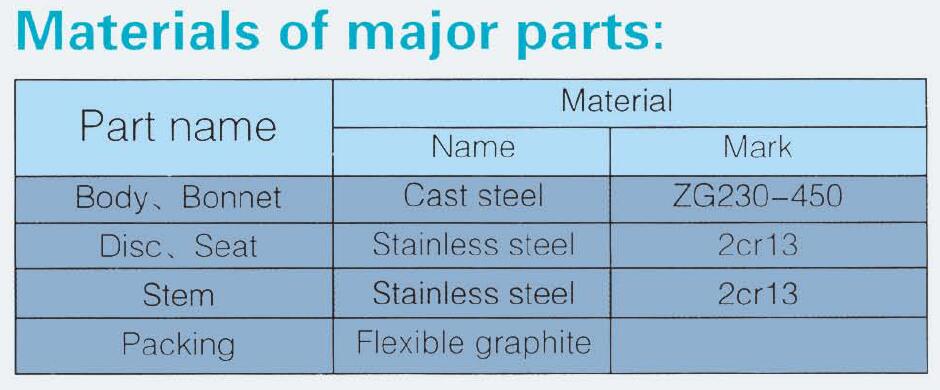

2.Material Table of marine SC SDNR check angle valve

No

name of part

material

class B

class C

1

body

SC450

2

bonnet

SC450

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200

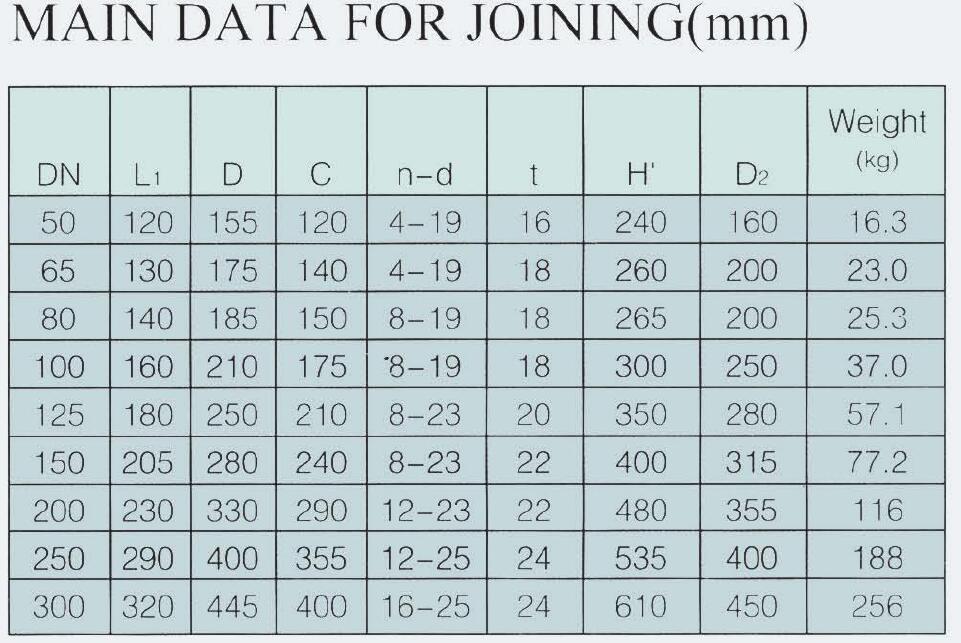

 3.Outline dimensions of marine SC SDNR check angle valve





Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
