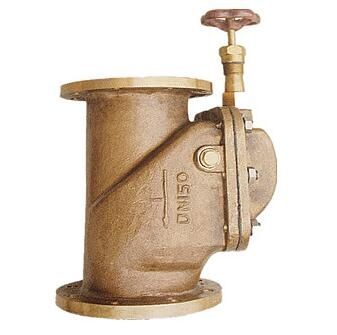

Product name : JIS Marine bronze globe storm valve
|
Details: |
Nominal Dia.: DN50~DN200
Nominal Pressure: 5K/10K Material: Bronze Brand:Bluesea Marine -------------------------------------------------------------------------------------------------------------------------------------------------------
JIS Marine bronze globe storm valve 1.Product description of marine bronze globe storm valve: F3060-Marine bronze globe Storm safety valve Nominal pressure; 5K(0.49Mpa)&10K(0.98Mpa) DN50, 65, 80, 100, 125, 150, 200 1.End Type; Flange 2.Straight Type 3.Application;Sea water piping, fresh water piping, oil piping and steam piping. 4.Function:Storm Valve are used for controlling the medium to open and close, preventing refluence in seawater and freshwater piping. It's Used to discharge Fresh water or waste water, and can automatically shut down and prevent the outside water flow backward side of valve.

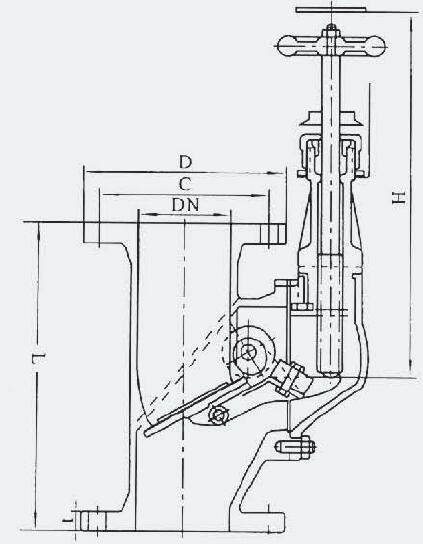

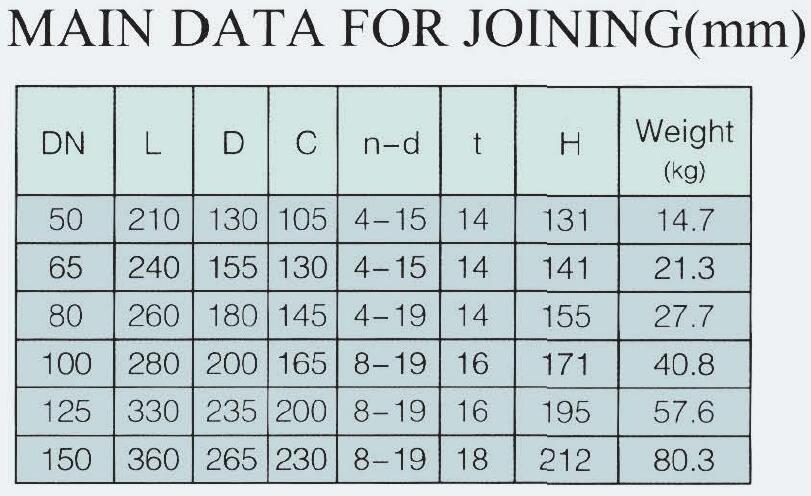

2.Material of marine bronze globe storm valve: Body/Bonnet/Disc; BC6,Bronze Stem; Brass C3771BD or 4641BE or SUS420; Gasket; NBR; Hand-wheel; FC200 3.Outline dimensions of marine bronze globe storm valve: |
