Product name : JIS F3060R Marine cast steel angle storm valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN200
Nominal Pressure: 5K/10K
Material:Cast Steel
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

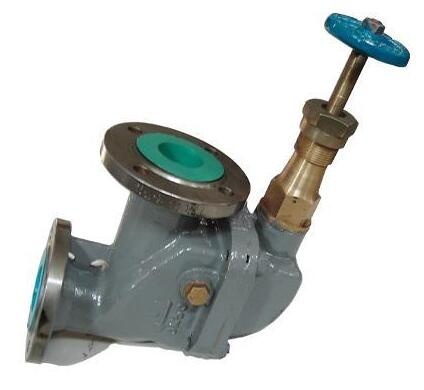

JIS F3060R Marine cast steel angle storm valve

1.Product description of marine cast steel angle storm valve:

F3060R-Marine Cast Steel angle Storm safety valve

Nominal pressure; 5K(0.49Mpa)&10K(0.98Mpa)

DN50, 65, 80, 100, 125, 150, 200

1.End Type; Flange

2.Angle Type

3.Application;Sea water piping, fresh water piping, oil piping and steam piping.

4.Function:Storm Valve are used for controlling the medium to open and close, preventing refluence in seawater and freshwater piping.

It's Used to discharge Fresh water or waste water, and can automatically shut down and prevent the outside water flow backward side of valve.


2.Material of marine cast steel angle storm valve:

Body/Bonnet/Disc; SC450

Stem; Brass C3771BD or 4641BE or SUS420;

Gasket; NBR;



Hand-wheel; FC200

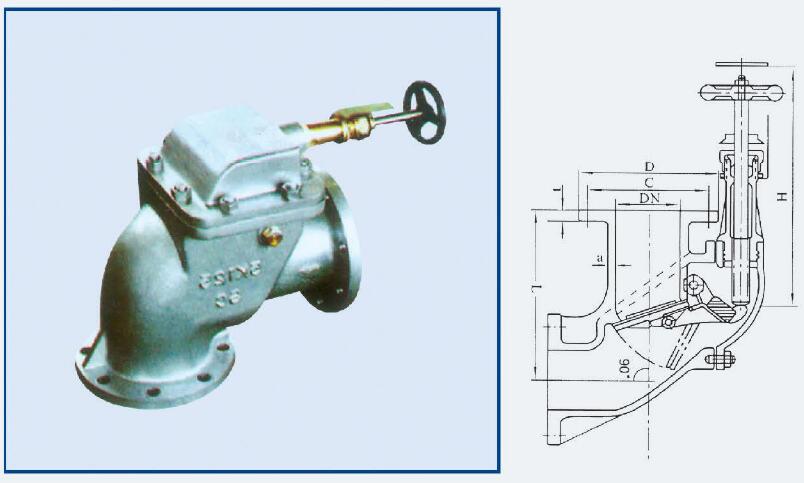

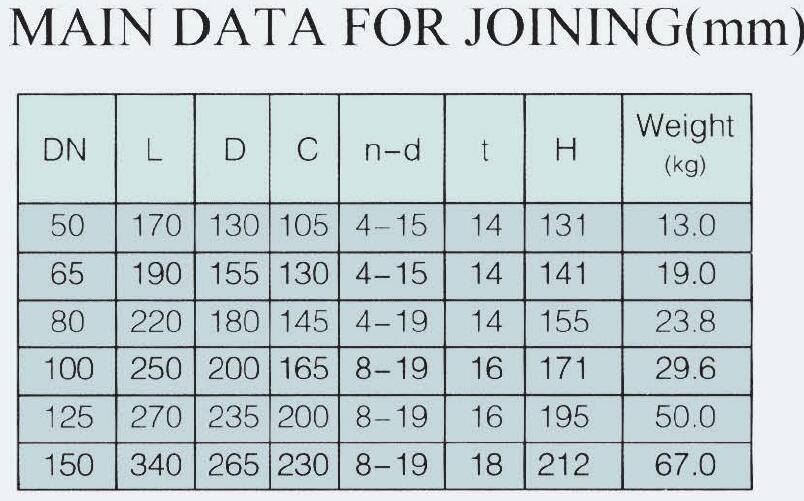

3.Outline dimensions of marine cast steel globe storm valve:



Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
