Products > Marine Valve for ship use > Marine check valve > JIS F7359 5K/10K Marine cast iron lift check angle valve
Product name : JIS F7359 5K/10K Marine cast iron lift check angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN250
Nominal Pressure: 5K/10K
Material:Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

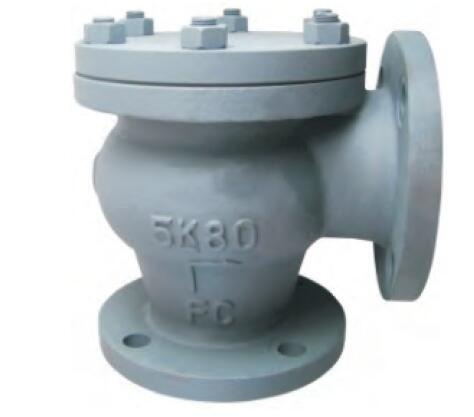

JIS F7359 5K/10K Marine cast iron lift check angle valve

1.Product description of lift check Angle valve;

Standard: JIS F7359

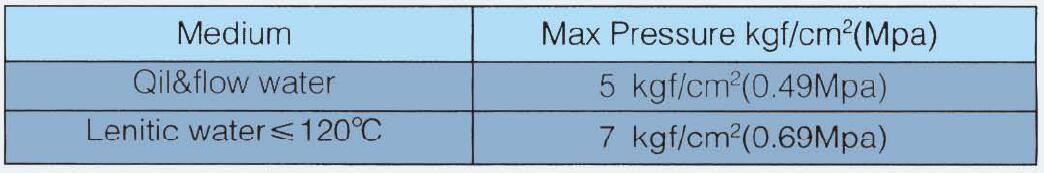

Pressure: 5/10kgf/cm2

Diameter: DN50mm-250mm

Type: lift check angle valve

Medium: water, air, oil etc

Actuation Ways: manual, automatic, pneumatic etc

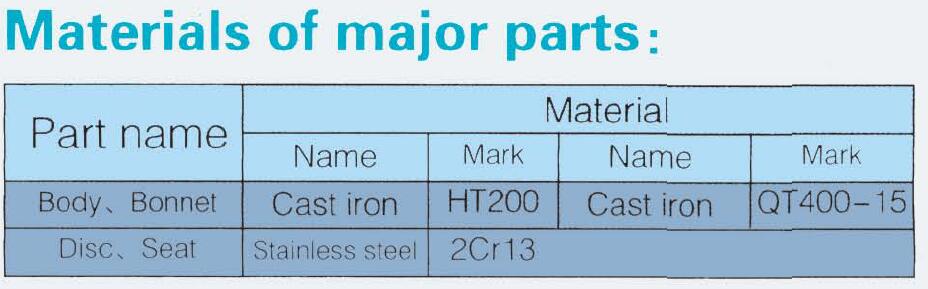

2.Material Table of lift check angle valve;



Name of Part

Material

1

Body

FC200

2

Bonnet

FC200

3

Disc

BC6

4

Valve Seat

BC6

5

Gasket

NON-asbestos

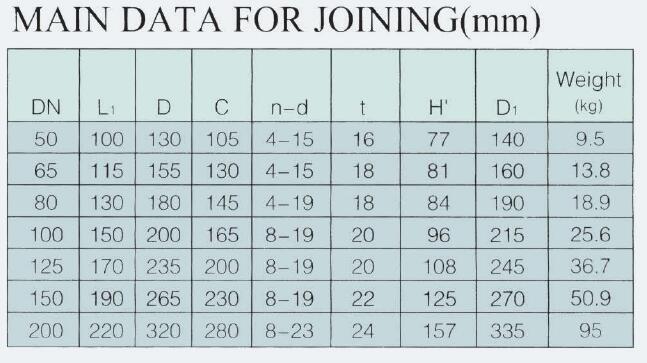

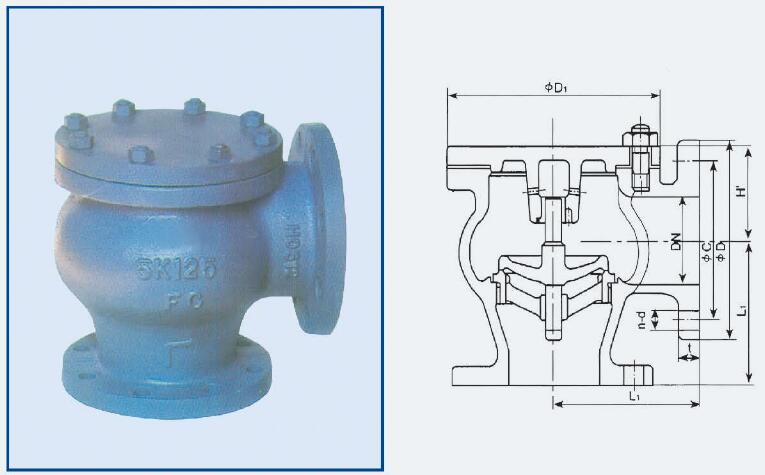

3.Outline dimensions of lift check angle valve;




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
