Products > Marine Valve for ship use > Marine globe valve > JIS F7306 5K Marine cast iron angle valve

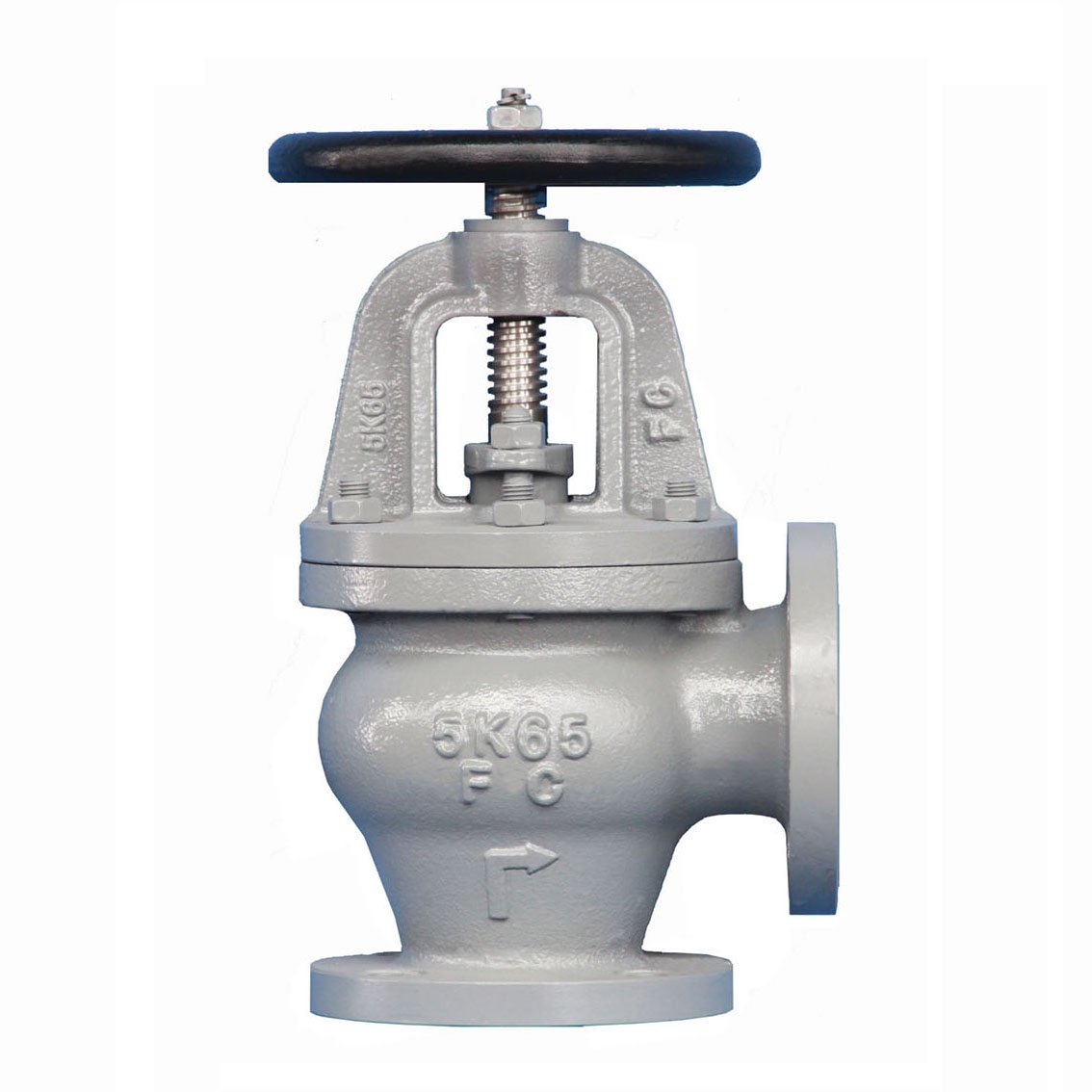

Product name : JIS F7306 5K Marine cast iron angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN400
Nominal Pressure: 5K
Material:FC Cast iron

Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

JIS F7306 5K Marine cast iron angle valve



1.Specification

Standard: JIS F7306

IMPA Code: 750222

Nominal Pressure: 5Kgf/cm2

Nominal Diameter: DN50~DN400

Medium: fresh water, sea water, air, oil etc

Actuation Ways:Manual, pneumatic, it is suitable for cutting or adjust and throttling medium.



2.Material Table



Name of parts

Material /CLASS B

CLASS C

1

Body

FC200

FC200

2

Bonnet

FC200

FC200

3

Disc

BC6

SCS2

4

Valve Seat

BC6

SCS2

5

Stem

C3771BD OH BE

SUS403

6

Packing Gland

BC6

BC6

7

Gasket

Non-asbestos

Non-asbestos

8

Hand wheel

FC200

FC 200


3.Outline dimensions:




4.Material &Pressure standard:



Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
