Product name : CLZ6J Ship axial ventilator fan-high pressure
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

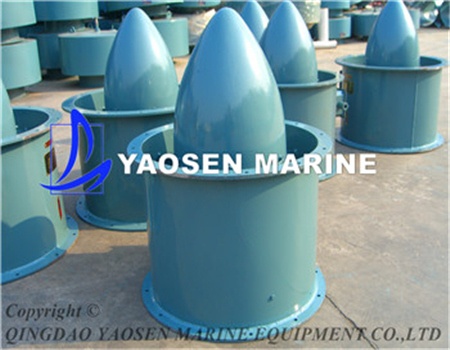

CLZ Series Marine Vertical High pressure Axial Flow Fan
1.General

CLZ Series vertical axial-flow fan for marine use (simply the fan), are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.

2.Construction

  CLZ fan consists of the impeller, casing motor, guide cowl, conical diffuser, etc.
   Casing is made of steel plate of having ample thickness, being composed of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of cylindrical ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.
   Motor—Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZT-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220/380V).
   Propeller is made of carrion resistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.
   The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher efficiency of the fan. Material: in forced plastics.
Finish—the fan is both printed and painted with marine paint.

3.Outline dimensions:

Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
