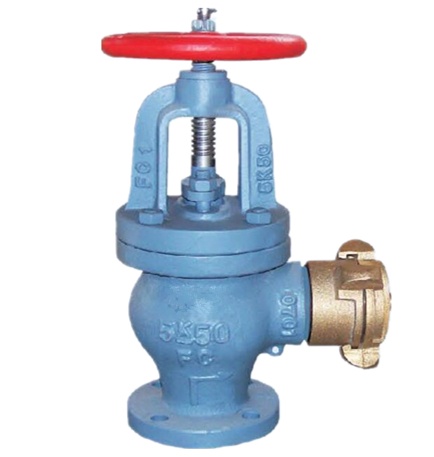

Product name : JIS F7333B Marine cast iron angle hose valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN65
Nominal Pressure: 5K/10K
Material:Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------
JIS F7333B Marine cast iron angle hose valve

1.Product description of marine cast iron angle hose valve:

F7333B-Marine Cast Iron Angle fire hose valve

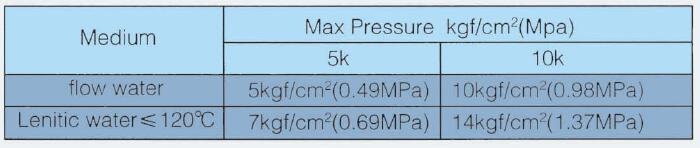

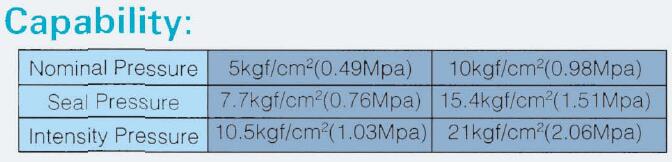

Nominal pressure; 5K(0.49Mpa)& 10K(0.98Mpa)

Model number; 5K50; 5K65,10K50; 10K65

1.End Type; Flange

2.AngleType

3.Application;Sea water piping, fresh water piping, oil piping and steam piping.

4.Function:The products are used for fire control with seawater for shipping. The flange dimensions are according to JIS B2220 standard of steel pipe.

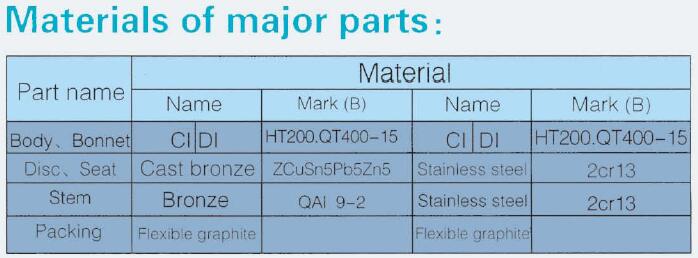

2.Material of marine cast iron angle hose valve:

Body/Bonnet;FC200;or FCD400



Disc/Valve seat/ Gland packing; BC6; or brass or Stainless Steel 2CR13 or 1CR13

Stem; Brass C3771BD; or Stainless Steel 2CR13 or 1CR13.

Gasket; Non-asbestos;

Hand-wheel; FC200

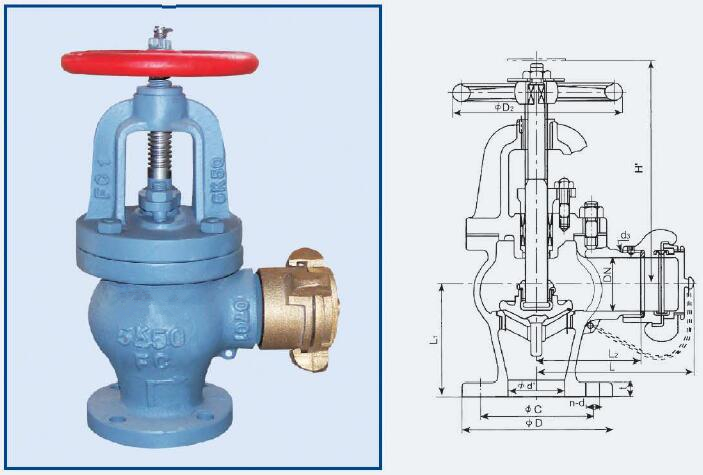

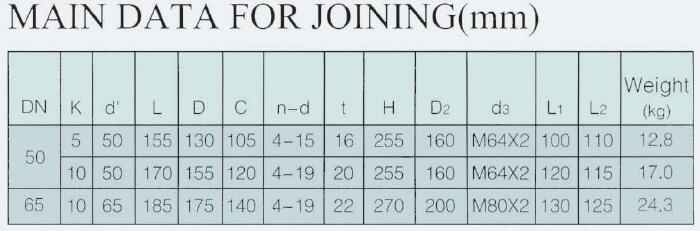

3.Outline dimensions of marine cast iron angle hose valve:






Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
